High-efficiency power converters, resonant inductors, planar transformers, and catalytic core integration components manufactured under ISO9001 & IATF 16949 standards.
An authoritative technical evaluation for procurement executives, power electronics engineers, and OEM system integrators.
In modern industrial and automotive power supplies, traditional hard-switched pulse-width modulation (PWM) topologies hit a hard limit in power density and thermal dissipation due to high turn-on and turn-off switching losses ($P_{sw} = \frac{1}{2} V I f_{sw} (t_r + t_f)$). Resonant converters, specifically LLC and LCC topologies, utilize soft-switching techniques—namely Zero Voltage Switching (ZVS) for primary switches and Zero Current Switching (ZCS) for secondary rectifiers.
By leveraging the resonant tank created by resonant inductance ($L_r$), magnetizing inductance ($L_m$), and resonant capacitance ($C_r$), the voltage across the MOSFET drops to zero before the gate voltage is applied. This eliminates capacitive turn-on losses and drastically suppresses high-frequency Electromagnetic Interference (EMI), enabling ultra-dense power packaging required by electric UAV chargers, renewable energy inverters, and medical equipment.

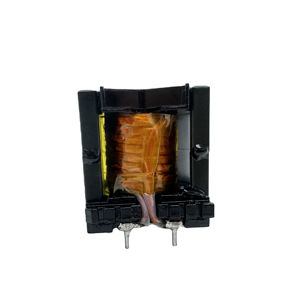

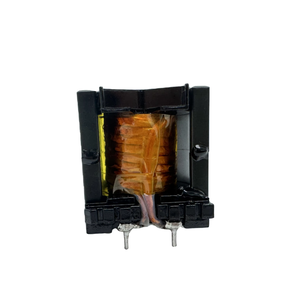

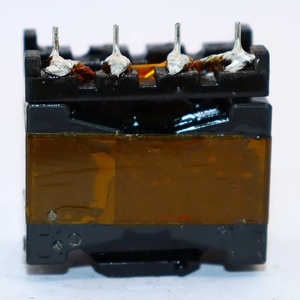

The performance of a resonant converter heavily depends on the precision of its magnetic components. As a leading China resonant converter factory, our engineering process incorporates high-flux, low-loss manganese-zinc (MnZn) ferrite cores (such as N97, PC95, or PQ/ETD profiles) capable of handling switching frequencies from 50 kHz to 500 kHz.
To eliminate high-frequency skin effect and proximity effect losses in heavy copper windings, we employ multi-strand oxygen-free copper Litz wire and triple-insulated wire (TIW). Integrated planar transformers combine the resonant inductor ($L_r$) directly into the transformer's leakage inductance profile, drastically reducing parasitic capacitance and optimizing total component footprint for high-power industrial applications.

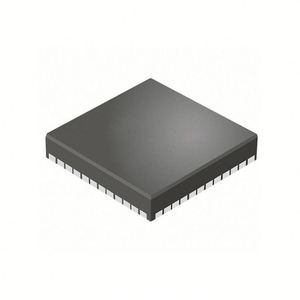

Selecting a verified OEM/ODM supplier in China requires strict audit transparency. Our manufacturing facilities utilize fully automated Surface Mount Technology (SMT) lines paired with 3D Automated Optical Inspection (AOI) and Automated X-ray Inspection (AXI) to guarantee zero-defect solder joints on critical resonant control ICs like the L6599AFDTR series.
Every resonant power supply module undergoes full-load burn-in testing inside dynamic thermal chambers (-40°C to +85°C) accompanied by real-time telemetry monitoring. Production processes fully comply with international standards including IEC/EN/UL 62368-1 for IT/AV equipment, IEC 60601-1 3rd Edition (2xMOPP) for medical electronics, and EN 50155 for railway rolling stock applications.
Direct technical comparison of power conversion architectures for mid-to-high power industrial applications.
| Performance Metric | Hard-Switched PWM (Half-Bridge) | Phase-Shifted Full-Bridge (PSFB) | LLC Resonant Topology (China OEM) |
|---|---|---|---|
| Primary Switching Mode | Hard Switching (High Loss) | Partial ZVS (Load Dependent) | Full ZVS (Zero to Full Load) |
| Peak Conversion Efficiency | 88.0% - 91.5% | 92.5% - 94.5% | 96.5% - 98.2% |
| EMI / RFI Radiation Level | High ($di/dt$ & $dv/dt$ spikes) | Moderate | Ultra-Low (Sinusoidal Current Waveform) |
| Operating Frequency Range | 30 kHz - 100 kHz | 50 kHz - 150 kHz | 80 kHz - 500 kHz |
| Magnetics Thermal Dissipation | Concentrated Heatsinking Required | Moderate Forced Air | Optimized Low Core Loss (MnZn Ferrite) |
| Total Cost of Ownership (TCO) | Baseline | +18% initial cost | -25% over 5-year operating cycle |
Market vectors driving component selection, factory qualification, and OEM purchasing strategies worldwide.
Global OEMs are rapidly replacing traditional silicon MOSFETs with Gallium Nitride (GaN) and Silicon Carbide (SiC) devices in LLC resonant tanks. This allows switching frequencies to exceed 500 kHz, shrinking magnetic volume by 50% while operating cleanly at higher junction temperatures.
Instead of risky ground-up custom designs, buyers are adopting "modified-standard" platforms. Factories adjust output voltage trims, pinout layouts, and conformal coatings on pre-certified base platforms to shave 16 weeks off compliance qualification cycles.
The explosion of commercial drone logistics and localized solar PV storage has surged demand for 1kW–5kW high-density resonant chargers (e.g., 58.8V 25A specs). Fast-charge response times and rugged IP67 encapsulation are now mandatory technical baseline criteria.
B2B buyers now demand full bill-of-materials (BOM) transparency, including conflict-free mineral declarations, REACH/RoHS 3 compliance certificates, and dual-sourcing options for critical driver ICs like the L6599 series to insulate against geopolitical delays.
Decades of power conversion expertise, vertically integrated production lines, and complete engineering lifecycle support.
From initial circuit simulation (SPICE & PLECS modeling) to rapid 3D-printed transformer prototyping, our fast-track engineering team delivers qualified functional samples within 14 working days.
Our manufacturing complex operates under strict ISO 9001:2015 and ISO 14001:2015 quality management systems. Selected automotive lines maintain IATF 16949 certification for electric vehicle converter assemblies.
With direct export capability to North America, Europe, and Asia-Pacific, we provide buffered safety stock management and a mandatory 5-year replacement warranty on all standard resonant module series.
Direct answers from our senior power electronics engineering and export management team.
LLC resonant converters utilize Zero Voltage Switching (ZVS) across the entire load spectrum. This minimizes switching transistor power dissipation, reduces thermal stress, elevates power conversion efficiency up to 98%, and generates far less Electromagnetic Interference (EMI), enabling compliance with EN 55032 Class B standards without oversized EMI filter components.
Yes. Customization is a core competency. We can adjust the turns ratio, primary magnetizing inductance ($L_m$), resonant inductance ($L_r$), pin configuration, and core geometries (PQ, ETD, EER, Planar) to match your custom DC bus voltage requirements (e.g., 400V EV bus, 48V telecom rail, or 58.8V drone quick-charging system).
Depending on the specific module series, our converters hold or are designed to comply with IEC/EN/UL 62368-1 (Audio/Video & ITE equipment), IEC/EN 60601-1 3rd Edition (2xMOPP medical safety), EN 50155 / EN 45545-2 (Railway shock, vibration, and fire safety), and carry CE, RoHS, and REACH compliance documentation.
Standard off-the-shelf samples ship within 3-5 business days. Modified or fully custom transformer and converter prototypes require approximately 10-14 working days. OEM production orders feature flexible MOQs starting as low as 100 units for high-power specialized modules.
For high-wattage sealed units (such as 1500W UAV fast chargers or outdoor PV micro-inverters), we employ thermally conductive polyurethane or silicone potting (thermal conductivity > 1.5 W/m·K) combined with aluminum alloy extrusion heat sinks to route heat away from high-power MOSFETs and magnetic cores efficiently.
Contact our engineering support desk today for schematic reviews, custom magnetic calculations, detailed datasheets, and direct factory quotation pricing.
