Why dual output converters and distribution cords are becoming the preferred infrastructure standard for industrial automation, medical equipment, rolling stock, and outdoor LED deployments.
In modern electrical systems, space optimization and thermal density are paramount design metrics. Dual output architectures—whether encapsulated AC-DC board-mount converters, high-voltage isolated switching supplies, or dual-outlet heavy-duty extension cords—allow system engineers to power two distinct subsystem rails from a single primary input. This eliminates redundant magnetic components, lowers printed circuit board (PCB) real estate requirements by up to 40%, and reduces inventory complexity for global original equipment manufacturers (OEMs).
However, engineering dual output systems presents technical hurdles: cross-regulation stability under asymmetric load profiles, galvanic isolation between rails (1500VDC to 6000VDC), strict EMC/EMI filtering (EN 55032 Class B), and rugged environmental sealing (IP67/IP68). This whitepaper evaluates the top global suppliers and exporters equipped to supply certified, highly reliable dual output power units.
High-reliability dual output switching power supplies, waterproof drivers, board-mount modules, and heavy-duty cabling systems currently exported worldwide.
Achieving stable regulation across unbalanced loads while maintaining electrical safety and compliance standards.
When V1 operates at 100% load while V2 is under 10% load, secondary winding coupling can cause voltage drift on V2. Leading dual output suppliers employ magnetic amplifiers (Mag-Amps) or independent post-regulators to guarantee cross-regulation tighter than ±3% to ±5% across all operating thresholds.
Industrial control and medical systems require stringent isolation between primary-to-secondary and output-to-output channels. Premium manufacturers ensure isolation ratings from 1500VDC to 6000VDC, carrying IEC/EN/UL 62368-1 for ITE and 2xMOPP (Means of Patient Protection) under IEC 60601-1 3rd Edition.
Convection-cooled enclosed systems and potted IP67/IP68 power supplies must maintain high MTBF at ambient temperatures up to +85°C or +105°C. Utilizing aluminum extrusion channels and vacuum epoxy encapsulation guarantees long-term durability against moisture, dust, and vibration.
Always verify the supplier's minimum load requirement (e.g., 5% or 10% minimum load on main channel) to prevent voltage shutdown or out-of-spec ripple on the secondary channel. Advanced converters feature zero-minimum-load regulation topologies, protecting sensitive digital processing units.
A comparative evaluation of leading manufacturers based on product range, certification portfolio, efficiency metrics, and customization capabilities.
| Supplier / Exporter | Core Product Focus | Input Range | Isolation Rating | Certifications | Warranty |
|---|---|---|---|---|---|
| Aimtec Power Solutions Top Rated | Modular AC-DC & Isolated DC-DC Dual Converters | 85-305 VAC / 4:1 DC Input | 1500VDC – 6000VDC (2xMOPP) | IEC/UL 62368-1, EN 50155, RoHS | 5 Years |

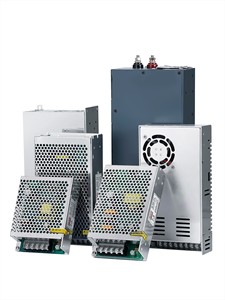

| NVVV Switching Power | Industrial D-Series Enclosed Dual Output Supplies | 110V/220V Switchable AC | 1500VAC Input/Output | CE, RoHS, ISO 9001 | 2-3 Years |

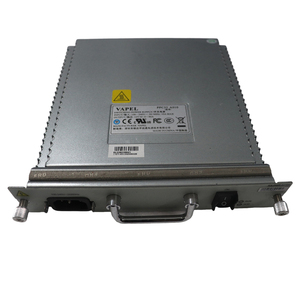

| LANBOO Technology | MS Series Compact Dual 12V/24V Rail Units | 85-264 VAC Universal | 3000VAC Isolation | CE, RoHS, CCC | 3 Years |
| Mean Well Enterprises | Open Frame & DIN Rail Dual Output Series | 85-264 VAC Universal | 3000VAC Isolation | UL, CE, TUV, EAC | 3 Years |
| TDK-Lambda | High Reliability Industrial Dual Output Modules | 85-265 VAC / Wide DC | 3000VAC / 4000VAC | UL 62368-1, EN 60601-1 | 5 Years |
| Vicor Corporation | High Power Density Brick Converters | Wide DC Bus Inputs | 2250VDC Basic Isolation | CE, UL, cURus | 2 Years |
| Recom Power | Board-Mount SIP/DIP Dual Output DC-DC | 4:1 & 2:1 Wide DC | 1000VDC – 6000VDC | EN 60950-1, EN 62368-1 | 3 Years |
| Cincon Electronics | Railway & Medical Dual Output Converters | 9-36V, 18-75V, 40-160V DC | 2000VAC – 3000VAC | EN 50155, IEC 60601-1 | 3 Years |
| Murata Power Solutions | Micro-SIP Board Mount Isolated Modules | 4.5-5.5V, 9-18V DC | 1000VDC – 3000VDC | UL 60950-1, CE | 2 Years |
| XP Power | Industrial & Healthcare Dual Output Supplies | 85-264 VAC Universal | 4000VAC (2xMOPP) | UL, CSA, EN, CB | 3 Years |
Lowering risk across design, qualification, and long-term volume supply chains.
Rather than starting a costly ground-up design, qualified suppliers modify proven base platforms—adjusting output voltage trims, pinout configurations, potted potting compounds, and custom wiring harnesses while retaining safety agency file approvals.
Mission-critical applications in railway rolling stock, medical infrastructure, and grid automation demand long production lifetimes. Global exporters issue formal Last-Time-Buy (LTB) notices and provide drop-in replacement roadmaps to guarantee uninterrupted continuity.
With stocking hubs in the Americas, Europe, and Asia-Pacific, top dual output suppliers eliminate lead-time bottlenecks, maintaining safety buffer stock for contractual Kanban and VMI (Vendor Managed Inventory) agreements.
Key technological shifts reshaping power supply procurement strategies over the next decade.
Gallium Nitride (GaN) and Silicon Carbide (SiC) switches allow switching frequencies to exceed 500 kHz to 1 MHz. In dual output switching power supplies, this drastically reduces the physical footprint of transformers and output chokes, driving efficiency past 95% while minimizing heat dissipation.
Modern dual output industrial power units are transitioning from passive components to smart subsystems equipped with digital PMBus interfaces. Engineers can monitor real-time output current, rail temperatures, and fault diagnostics remotely in smart factory environments.
To support standardized product lines across diverse battery voltages (e.g., 24V, 48V, 72V, 110V DC in railway and energy storage systems), dual output converters now incorporate ultra-wide input ranges, simplifying OEM bill-of-materials (BOM) management.
Direct answers from application engineers to help streamline vendor qualification and compliance audits.
An isolated dual output supply uses internal transformers to galvanically separate the primary input circuit from both secondary output rails, and often isolates output 1 from output 2. This prevents ground loops, protects sensitive microprocessors, and ensures safety under high voltage differentials. A non-isolated converter shares a common electrical ground, offering higher power density and efficiency at lower cost for point-of-load (PoL) step-down applications.
Cross-regulation issues occur when a heavy load change on Output 1 causes an unwanted voltage swing on Output 2. Engineers mitigate this by choosing supplies with independent secondary windings, weighted feedback loops, linear post-regulators, or dedicated Mag-Amp regulation circuits that keep output variation within ±3% under extreme load imbalances.
For industrial IT and audio/video equipment, certification to IEC/EN/UL 62368-1 is mandatory. Medical applications require compliance with IEC 60601-1 3rd Edition featuring 2xMOPP insulation and low leakage currents (<10 µA). Railway rolling stock deployments must comply with EN 50155 and fire safety standard EN 45545-2. Additionally, CE, UKCA, RoHS, and REACH compliance declarations are necessary for European distribution.
Yes. Most established dual output manufacturers offer modified standard programs. Common modifications include trimming standard voltages (e.g., adjusting 12V/24V to 15V/28V), applying conformal coating or full IP68 epoxy potting, changing pinout geometries, and attaching custom wiring harnesses without losing existing safety agency baseline approvals.

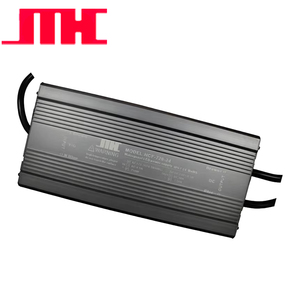

For outdoor LED signage and general rainproof industrial environments, an IP65 or IP67 rating with a protective metal drip canopy is recommended. For severe outdoor, submersible, or washdown industrial environments, fully potted IP68 aluminum-housed dual output supplies provide total protection against dust, water immersion, and corrosive atmospheres.
Connect with our senior power electronics engineers to request datasheets, compliance documentation, or evaluation samples tailored to your OEM platform.
