Explore our industrial-grade portfolio engineered for extreme voltage protection, acoustic attenuation, thermal containment, and high-frequency signal separation.
Backing critical infrastructure with rigorous qualification, certified quality control, and responsive application engineering since 2002.
Every product family is manufactured under strict ISO 9001 quality management systems. Our high-voltage and electronic isolation modules meet or exceed global mandates including IEC/EN/UL 62368-1, IEC 60601-1 (2xMOPP medical rating), EN 50155 for railway rolling stock, and IEC 61000-4 surge/immunity protocols.
Eliminate the cost and risk of ground-up development. We specialize in modifying qualified isolation platforms—adjusting output voltage trims, customized pinouts, specialized ceramic encapsulation, conformal coatings, high-density mineral wool compositions, and extended thermal screening (-40°C to +105°C).
With operational hubs and authorized stocking partners across the Americas, Europe, and Asia-Pacific, we guarantee dependable supply chain continuity. OEM program managers benefit from strategic buffer stock, automated inventory management, and long-term lifecycle commitment with standard 5-year warranties.
An in-depth analysis of high-isolation technologies across electrical power distribution, RF telecommunications, power conversion, and architectural acoustic control.
In modern industrial engineering, isolation is the fundamental barrier protecting sensitive electronics, high-voltage equipment, and human operators from hazardous electrical surges, thermal degradation, acoustic interference, and electromagnetic noise. As global industrial automation expands, renewable energy grids transition to higher working voltages, and telecommunications migrate to super-high frequencies, the demand for specialized OEM high isolation factories capable of delivering custom-engineered solutions has intensified.

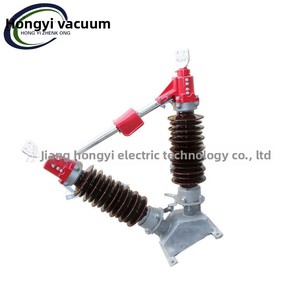

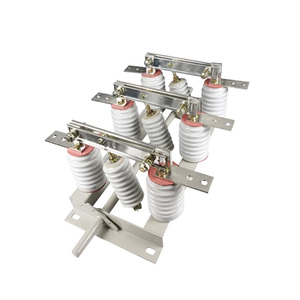

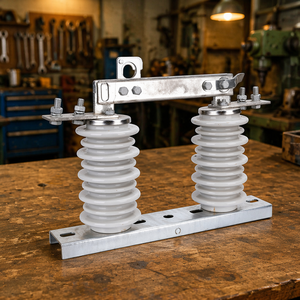

Industrial power grids operating at medium to high voltages (12kV to 40.5kV) require robust isolation switchgear to guarantee circuit separation during maintenance and fault conditions. Devices such as the GN19-12 indoor disconnector and the GW9/GW5 outdoor pole-mounted isolation switches represent the pinnacle of mechanical and electrical safety design.
Key technical advances in high-voltage switch manufacturing focus on optimizing contact surface metallurgy and insulation dielectric strength. Modern OEM factories utilize high-grade 99.9% electrolytic copper coated with heavy tin or silver plating. This prevents oxidation under severe outdoor atmospheric conditions while maintaining minimal contact resistance under continuous 630A to 2500A loads. Furthermore, porcelain and composite silicone rubber insulators are subjected to rigorous steep-front impulse voltage testing to eliminate dielectric breakdown risks during lightning strikes or switching transients.

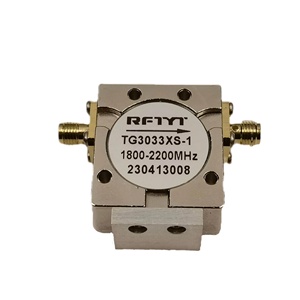

In telecommunications base stations, radar systems, and UHF/SHF communication links, signal reflections can cause severe damage to power amplifiers. The integration of high-isolation ferrite isolators—such as the RFTYT 1800-2200MHz 100W coaxial isolator—is vital for maintaining system stability.
Achieving low insertion loss (≤ 0.35dB) alongside ultra-high isolation (≥ 23dB) across broad temperature bandwidths requires micro-precision manufacturing. Leading OEM suppliers employ customized ferrite magnetic formulations, optimized internal matching networks, and robust aluminum housings shielded against electromagnetic interference (EMI). The trend toward 5G expansion and defense satellite links drives factories to shrink device footprints while increasing power handling capabilities beyond 100W continuous wave (CW).

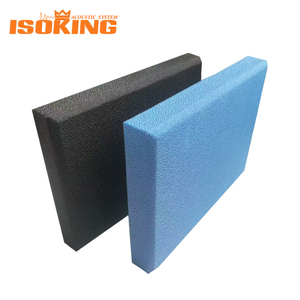

High isolation extends beyond electrical fields into physical energy management. Thermal and acoustic insulation panels—ranging from high-density rock wool boards to eco-friendly carbon polymer grooved panels—are essential components in industrial plants, recording studios, architectural facades, and heavy equipment enclosures.

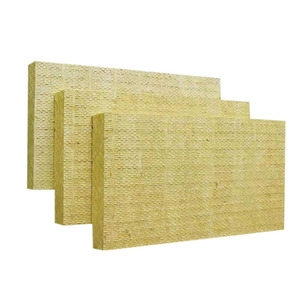

Engineered rock wool insulation utilizes basalt rock melted at temperatures exceeding 1400°C, spun into fine fibers, and bound with hydrophobic resins. This produces a structural board with density ranging from 60kg/m³ to 140kg/m³, capable of delivering an Acoustic Noise Reduction Coefficient (NRC) up to 0.95 and thermal conductivity as low as 0.034 W/m·K. Concurrently, advanced flame-retardant carbon polymers provide modern architectural projects with lightweight, UL94-V0 rated acoustic absorption that resists moisture, impact, and biological decay.
For board-level electronics in medical devices, railway rolling stock, and smart grid meters, power supply modules must provide galvanic isolation ranging from 1.5 kVDC up to 6.0 kVDC. High isolation AC-DC and DC-DC converters physically separate input and output circuits, breaking ground loops and protecting low-voltage microprocessors from high-voltage bus spikes.
| Isolation Technology Sector | Primary Technical Metric | Key OEM Customization Options | Target Compliance / Standard |
|---|---|---|---|
| High Voltage Switchgear | 12kV – 40.5kV Dielectric Strength | Copper blade thickness, silver plating depth, mounting brackets | IEC 62271-102, GB 1985 |
| RF Coaxial Isolators | ≥23dB Isolation, ≤0.35dB Insertion Loss | Custom frequency tuning (1.8-2.2GHz), connector type (N/SMA) | MIL-STD-202, RoHS/REACH |
| Acoustic & Thermal Panels | NRC 0.95, STC 52dB, Class A Fire Rating | Density adjustment (60-140kg/m³), surface grooving, thickness | ASTM C612, UL94-V0, EN 13501-1 |
| Galvanic Power Modules | 1.5kVDC – 6kVDC (2xMOPP Isolation) | Output voltage trimming, SIP/DIP footprint, conformal coating | IEC/EN/UL 62368-1, IEC 60601-1 |
Navigating global supply chain shifts, regulatory mandates, and total cost of ownership optimization.
Global original equipment manufacturers (OEMs) are shifting away from bespoke, ground-up custom designs due to escalating NRE (Non-Recurring Engineering) costs and multi-year qualification delays. Sourcing managers increasingly favor standard isolation platforms that can be customized on the factory line—such as custom-drilled high-voltage copper disconnectors, specialized acoustic panel cuts, or trimmed output power modules. This approach slashes time-to-market by up to 60% while retaining existing safety agency certifications.
Environmental standards such as EU RoHS, REACH, and PFAS-free material mandates are now non-negotiable procurement criteria. Factories supplying thermal wool, carbon polymer panels, or electrical switchgear must provide full chemical transparency and audit-ready material declarations. Furthermore, infrastructure buyers in railway and utility sectors require long-term lifecycle commitments, including 10-to-15 year component availability and formal Last-Time-Buy (LTB) notifications.
Geopolitical volatility and freight disruptions have made supply chain agility a paramount evaluation factor. Tier-1 procurement teams are establishing dual-sourcing frameworks with OEM factories that maintain multi-regional warehouse networks. Regional buffer stock near major manufacturing clusters in North America, Europe, and Asia ensures steady delivery schedules and protects against sudden demand spikes.
Leading buyers evaluate suppliers beyond unit price, focusing heavily on total cost of ownership. Substandard isolation components introduce severe failure risks—such as arc flash hazard, RF amplifier burnout, thermal degradation, or room acoustic failure. Partnering with ISO 9001 certified factories that enforce 100% automated optical inspection (AOI) and high-potential (Hi-Pot) dielectric testing drastically reduces field warranty claims.
Common inquiries answered by our senior isolation engineering and sourcing team.
An isolated system uses a physical or galvanic barrier—such as a power transformer, ceramic insulator, or high-density acoustic board—to prevent direct electrical current, thermal energy, or signal reflection between circuits or spaces. Non-isolated systems share a common electrical ground or structural connection, which offers higher efficiency or lower cost but lacks protection against ground loops, high-voltage surges, noise transfer, and catastrophic equipment damage.
Selection depends primarily on the installation environment and system voltage class. The GN19 series is specifically engineered for indoor switchgear cubicles operating at 12kV, focusing on compact mechanical interlocks and high dielectric strength in confined spaces. The GW9 and GW5 series are designed for outdoor pole-mounted or substation framing applications operating from 12kV up to 40.5kV, featuring heavy ceramic or silicone rubber insulators and weather-resistant silver-plated copper contacts capable of handling currents up to 2500A.
Our OEM factory capabilities for rock wool board production include custom density adjustments (from 60kg/m³ to 140kg/m³), tailored board thicknesses (50mm to 200mm), specialized hydrophobic water-repellent treatments, aluminum foil or fiberglass tissue facings, and pre-cut CNC dimensions designed to fit proprietary architectural metal ceiling or wall cassette frameworks.
In high-power RF transmitters (such as 1800-2200MHz UHF/SHF telecom stations), impedance mismatches at the antenna cause radio frequency energy to reflect back toward the transmitter. An RF coaxial isolator acts as a one-way street for microwave signals: it allows forward power to pass from the transmitter to the antenna with minimal loss (≤ 0.35dB) while diverting reflected power into an internal dump load with high isolation (≥ 23dB), protecting costly power transistors from destruction.
Yes. Most OEM projects achieve compliance faster by customizing qualified platform designs. We adjust creepage and clearance distances, apply specialized potting compounds, upgrade insulation classes, and integrate custom terminal wire harnesses. This allows the finished product to fulfill stringent industry standards—such as IEC/EN/UL 62368-1 for IT, IEC 60601-1 for 2xMOPP medical equipment, and EN 45545-2 for railway fire safety—with minimal lead time.
Sample evaluation units for standard and modified standard products are typically dispatched within 5 to 10 working days. For full OEM production runs, MOQs vary depending on the product category—typically starting at 50 to 100 units for heavy high-voltage switchgear, and 500+ units for board-level electronic modules or custom acoustic panels. Contact our sales engineering team via the inquiry button to discuss specific program requirements.
Whether you require customized high-voltage switchgear, RF coaxial isolators, medical-grade power conversion modules, or architectural acoustic insulation, our senior engineering team is ready to support your technical specification and quotation needs.
