Explore our flagship industrial power modules, signal isolation transducers, dry-type transformers, fieldbus protocol gateways, and variable frequency drives engineered for zero-down-time applications.
A comprehensive analysis of topology design, electromagnetic compatibility (EMC), thermal management, and galvanic isolation in modern automated manufacturing facilities.
In contemporary industrial automation, smart grid integration, and heavy equipment operation, electrical power conversion equipment acts as the fundamental backbone ensuring operational efficiency and signal integrity. As global industrial ecosystems transition toward Industry 4.0 and Smart Manufacturing, the demand for high-density, highly reliable power converters, frequency drives, isolated transducers, and fieldbus communication gateways has experienced an unprecedented surge.
Key Engineering Paradigm: Modern industrial power supplies must balance maximum power density with minimum Total Harmonic Distortion (THD), robust Electromagnetic Interference (EMI) suppression, and strict compliance with safety certifications such as IEC/EN/UL 62368-1, IEC 60601-1 (2xMOPP), and EN 50155 for rolling stock environments.
Industrial power converters operate in harsh electrical environments characterized by transient voltage spikes, severe ground loops, and high electromagnetic noise. Galvanic isolation—achieved through high-frequency planar transformers and optoelectronic isolation barriers—is essential to protect sensitive Programmable Logic Controllers (PLCs), microcontrollers, and sensor arrays.

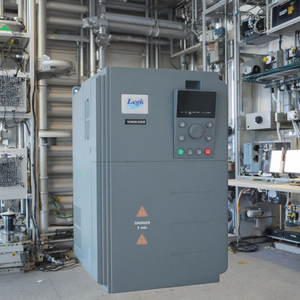

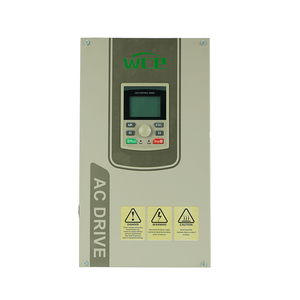

Variable Frequency Drives (VFDs) and AC motor speed controllers play a pivotal role in optimizing energy efficiency across pump systems, industrial fans, conveyor belts, and CNC spindle drives. By rectifying incoming AC line power into a stable DC bus and re-inverting it via Pulse Width Modulation (PWM) driven by Insulated-Gate Bipolar Transistors (IGBTs), our 220V and 380V industrial frequency converters deliver total torque control, reduced inrush current, and dynamic energy savings up to 40% under partial load conditions.
Compare fundamental engineering parameters across our primary product families to select the optimal power component for your OEM or system integration program.
| Converter Category | Input Voltage Range | Output Characteristics | Isolation Rating | Efficiency Rating | Operating Temperature | Compliance Standards |
|---|---|---|---|---|---|---|

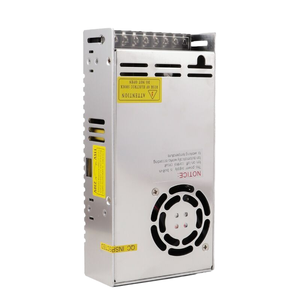

| AC-DC Universal Switching Power Supplies | 85 – 305 VAC (Universal) / 120–370 VDC | 12V, 24V, 36V, 48V DC (Up to 1000W) | 3,000 VAC Input to Output | 88% – 94% Typical | -40°C to +85°C | IEC/EN/UL 62368-1, EN 55032 Class B |

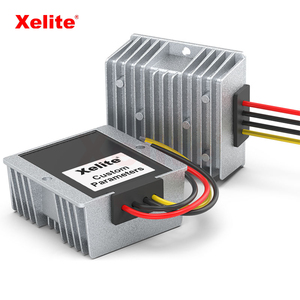

| Isolated DC-DC Voltage Regulators | 4.5–9V, 9–36V, 18–75V, 40–160V (2:1 / 4:1) | 3.3V, 5V, 12V, 15V, ±12V, ±15V DC | 1,500 VDC – 6,000 VDC | 85% – 92% Typical | -40°C to +105°C | EN 50155, EN 45545-2 (Railway), UL 94V-0 |

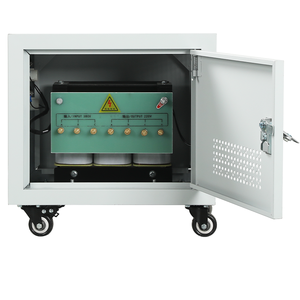

| 3-Phase Dry-Type Isolation Transformers | 380 VAC / 415 VAC / 440 VAC 3-Phase | 220 VAC / 200 VAC 1-Phase or 3-Phase | 2,500 VAC / 1 Min | 95% – 98% High Efficiency | -20°C to +60°C | CE, ISO 9001, GB/T 10228 |
| Industrial VFD Frequency Converters | 220V 1-Phase / 380V 3-Phase (±15%) | 0 – 400Hz / 0-600Hz PWM AC Output | Optical Gate Drive Isolation | 96% Peak Drive Efficiency | -10°C to +50°C | IEC 61800-3, IEC 61800-5-1, CE |

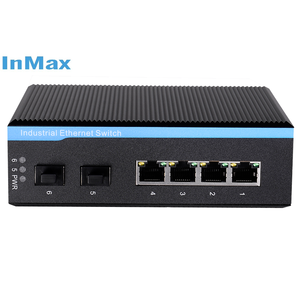

| Fieldbus & Fiber Media Converters | 9 – 36 VDC Wide Range Terminal Input | EtherCAT, PROFINET, Modbus, Fiber Optic | 1,500 VDC Signal Isolation | Low Power (<3W) | -40°C to +85°C Industrial | IEEE 802.3, IEC 61000-4-2/4/5 ESD Immunity |
Our converters support ultra-wide 4:1 and 2:1 DC input ranges alongside 85–305 VAC universal AC inputs, handling severe grid voltage sag and surge transients without output interruption.
Integrated hardware protections include Over-Voltage Protection (OVP), Short-Circuit Protection (SCP with auto-recovery), Over-Current Protection (OCP), and Thermal Shutdown (OTP).
Engineered with premium Japanese electrolytic capacitors and automated surface-mount technology (SMT), our power modules achieve MTBF ratings exceeding 500,000 hours per MIL-HDBK-217F.
Understanding technology transitions to build resilient, efficient, and future-proof power architecture supply chains.
The industrial power conversion market is undergoing a structural evolution driven by energy transition goals, the adoption of Wide Bandgap (WBG) semiconductors, and real-time fieldbus digitalization. Global procurement teams and design engineers must factor these macro trends into their vendor selection and platform architecture strategies.
Gallium Nitride (GaN) and Silicon Carbide (SiC) power switches are replacing traditional Silicon MOSFETs in high-density industrial converters. By operating at switching frequencies up to five times higher with significantly lower switching losses, SiC and GaN converters allow engineers to shrink magnetic components (inductors and transformers), reducing power supply footprint by up to 40% while pushing power efficiency past 96%.

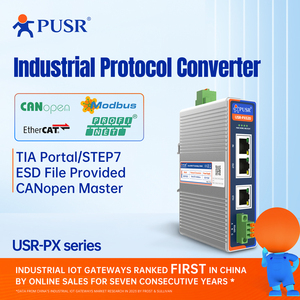

Modern automated factories no longer view power supplies as isolated black boxes. Smart power modules now integrate fieldbus communication interfaces—such as Modbus TCP, EtherCAT, and PROFINET—enabling real-time monitoring of output voltage, ripple currents, operating temperature, and health diagnostics directly within the central PLC environment. Protocol converters like our USR-PX series bridge legacy serial devices into high-speed Ethernet fabrics without complex PLC re-coding.
Developing fully custom power supplies from scratch incurs excessive non-recurring engineering (NRE) costs, lengthy compliance testing, and extended time-to-market risks. The preferred strategy among global OEMs is adopting qualified "modified-standard" platforms. By adjusting output trim voltages, modifying pinouts, applying conformal coating, or customizing wire harnesses on an established safety-certified platform, OEM buyers achieve custom functionality while retaining certified compliance and fast production ramp-up times.
Direct-from-factory pricing backed by international engineering standards, rigorous compliance verification, and robust multi-region supply chains.
Our power converters are developed and verified against global safety standards including IEC/EN/UL 62368-1 for IT/Industrial equipment, IEC 60601-1 3rd Edition (2xMOPP) for medical medical electronics, EN 50155 for railway systems, and CE/FCC EMC regulations.
Modify voltage trim, custom potting compounds for IP67 harsh environment resistance, footprint adaptation, custom wire harnesses, and extended environmental screening (-40°C to +105°C) to fit your exact mechanical envelope.
Operating under ISO 9001 quality management systems, every converter undergoes automated 100% full-load burn-in testing and parametric verification. We back our standard series with a comprehensive 5-year factory warranty.
Expert answers to critical engineering, specification, and wholesale procurement questions.
Partner directly with a leading China wholesale industrial converter factory. Speak with our application engineers today to discuss parametric selection, request evaluation samples, or initiate modified-standard OEM projects.
